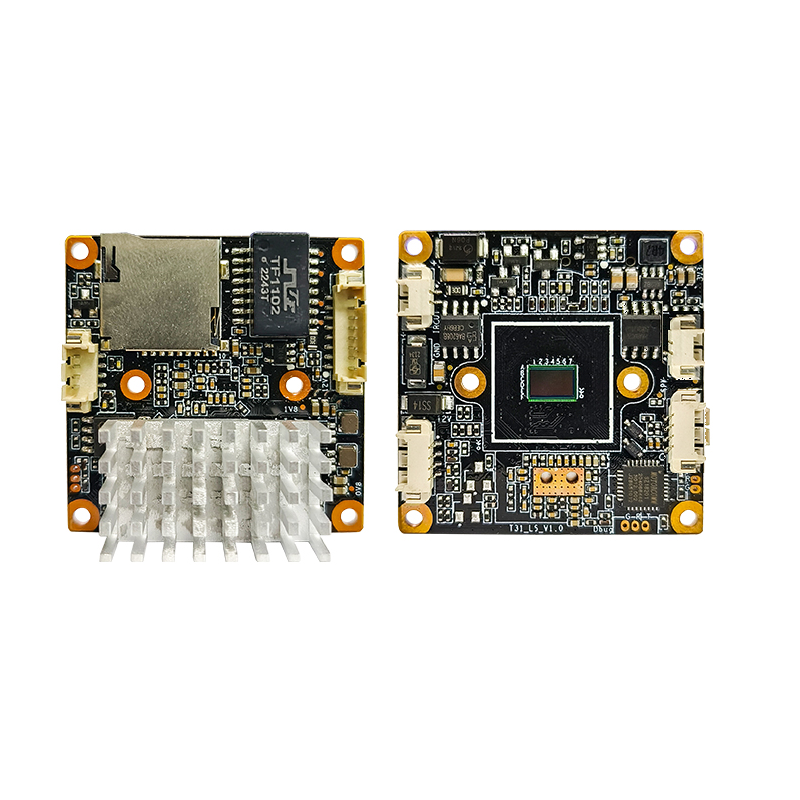

IP 5.0 megapixel 2K sd card slot Z55F high-performance support two-way voice intercom can realize voice broadcast after human figure detection support Smart H.265/H.264H intelligent coding pcb camera module board.

Shopping Cart (0)

New Arrivals

Category:	IP PCB BOARD
Price:	₹1,299.00
Material:	Conducting Material
Colour:	Black
{{variant.name}}:	{{opt.name}} {{opt.value ? '' : opt.name}} {{opt.value ? '' : opt.name}}

Description

IP 5.0 megapixel 2K sd card slot Z55F high-performance support two-way voice intercom can realize voice broadcast after human figure detection support Smart H.265/H.264H intelligent coding pcb camera module board.

●Resolution 5MP 2592*1904@20fps, 4MP 2560*1440@25fps ,3MP 2304*1296@25fps ,2MP 1920*1080@25fps is optional.

●Built-in humanoid detection algorithm;

●Detection frame 5fps, detect 5 people at the same time;

●Low consumption, low code stream, low delay;

●H.265 compression format, save bandwidth and storage space;

●Support Smart IR to avoid Infrared over-exposure at night;

●Support ICR auto switch, achieve best result for D&N video;

●Support TF card slot (512G) for local storage

●Support 3D DNR and digital WDR;

●Support auto-electronic shuttle to suit different surveillance environment

●Support two-way audio intercom

●Support HTTPS encrypted transmission

●Support Onvif, email, NTP service

●Change the password during initial use to ensure the security of the password

Model no	Z55F
Chipset	T31X
Sensor	1/2.7", 5MP low illumination CMOS sensor
Lens	Support fixed lens and varifocal lens
D&N	ICR switch, auto/color/B&W/CDS trigger/ customized time
D-WDR	WDR (Off/Low/Middle/High)
IR Led Control	IR/warm/dual light, auto/manual/off, support 0-100 brightness adjust
3D DNR	Off/Low/Middle/High/Higher
Defog	Off/Low/Middle/High
Mirror	Off/horizontal mirror/vertical mirror/180° flip
Image Setting	Brightness,contrast,sharpness,saturation,chroma
Humanoid Detection
Detection Quantity	≤5 person
Humanoid Size	Humanoid pixel≥40X40
Detection Ratio	≥99%（meet above requirement）
Capture Corresponding speed	≤1s
Max Detection Frame	5fps/s
Fault Detection Ratio	≤2%
Detect Part	People with any posture including half body,head,hand shoulder
Track People	Support
Detection Mode	Support static and dynamic humanoid detection
Detection Method	Image detection during day or night time with lights or IR Leds
Detection Area	Appointed area, default full-screen
Upload Method	Upload it under private protocol
Trigger Method	Video trigger
Audio & Video Encoding
Standard		Smart 265, H.265,H.264
Encoding Feature		Main stream:5MP 25921904,4MP 25601440@20fps, 3MP 23041296@20fps, 2MP19201080@25fps Sub-stream:D1(720576),VGA(640480),Q720P(640360),CIF(352288),QVGA(320*240)
Max Resolution		5MP 2592*1904
Video Code Rate		Fixed code rate,variable code rate(main stream:160Kbps-4000kbps)
Video Type		Composited stream/video stream
Audio Standard		G.711u/ G.711A 64Kbps
Network Function
Network protocol		TCP/IP.UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP
Connection Protocol		Slink, Onvif, GB28181 (option)
Security Mode		Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification
Motion Detection		Set detection area, can set multi-level sensitivity
Occlusion Alarm		Support 1 area
Privacy Mask		Support 4 areas
Schedule Linkage		Snapshot, email
Device Abnormal Inspection		Support network broken alarm, IP conflict alarm, illegal visiting alarm
Character Overlay (OSD)		Title, time and date overlay, multi-line, and color of characters optional
Port
Network Port		RJ45 10M/100M network self-adaptation
Audio		MIC Input/ Output
Amplifier		Built-in amplifier board
TF card slot		Support, 512G for local storage
General
Power Supply		DC12V /PoE (option)
Size		38*38mm
Working Temperature		-10°C ~ 50°C
Working Humidity		0﹪~90﹪
