Camera

Model

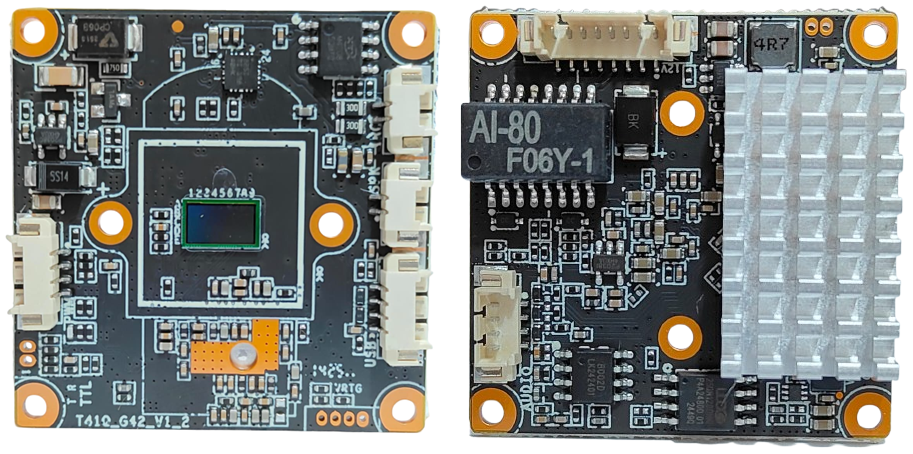

AI-80

Chipset

T41NQ

Sensor

1/2.66", 8MP low illumination CMOS sensor

Lens

Support fixed lens and varifocal lens

D&N

ICR switch, auto/color/B&W/CDS trigger/ customized time

D-WDR

Support

IR Led Control

IR/warm/dual light, auto/manual/off, support 0-100 brightness adjust

3D DNR

Off/Low/Middle/High/Higher

Defog

Off/Low/Middle/High

Mirror

Off/horizontal mirror/vertical mirror/180° flip

Image Setting

Brightness,contrast,sharpness,saturation,chroma

Normal Events

Motion Detection

a, 1) Support day arming /night arming mode;

2) Support to configure the customized arm time by week, with 4 time periods per day;

b, Support full screen / area detection;

c, Linkage setting support: upload mail \ voice broadcast alarm \ alarm light;

Occlusion Alarm

a, 1) Support day arming /night arming mode;

2) Support to configure the customized arm time by week, with 4 time  periods per day;

b, Support one detection area;

c, Linkage setting support: upload mail \ voice broadcast alarm \ alarm light;

Privacy Mask

a, Support 4 areas

Intelligent Events

Area Intrusion

a, 1) Support day arming /night arming mode;

2) Support to configure the customized arm time by week, with 4 time  periods per day;

b,  Support one detection area, and can draw a multi deformation detection area (Detection area is consist of six points);

c, Support video stream overlay detection frame;

d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);

e, Linkage setting support: upload mail \ voice broadcast alarm \ alarm light;

Line-Cross Detection

a, 1) Support day arming /night arming mode;

2) Support to configure the customized arm time by week, with 4 time  periods per day;

b,  Support one detection line, supports detection directions: A->B: ;

c, Support video stream overlay detection frame;

d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);

e, Linkage setting support: upload mail \ voice broadcast alarm \ alarm light;

Loitering

a, 1) Support day arming /night arming mode;

2) Support to configure the customized arm time by week, with 4 time  periods per day;

b,  Support one detection area, and can draw a multi deformation detection area (Detection area is consist of six points);

c, Support video stream overlay detection frame;

d, Support Loitering time setting[10-3600]S;

e, Linkage setting support: upload mail \ voice broadcast alarm \ alarm light;

Absent Alarm

a, 1) Support day arming /night arming mode;

2) Support to configure the customized arm time by week, with 4 time  periods per day;

b, Support one detection area, and can draw a multi deformation detection area (Detection area is consist of six points);

c, Support video stream overlay detection frame;

d, Support absent time setting[10-3600]S;

e, Support at least 1-3 people on duty;

f, Linkage setting support: upload mail \ voice broadcast alarm \ alarm light

Vehicle illegal Parking

a, 1) Support day arming /night arming mode;

2) Support to configure the customized arm time by week, with 4 time  periods per day;

b, Support one detection area, and can draw a multi deformation detection area (Detection area is consist of six points);

c, Support video stream overlay detection frame;

d, Support illegal parking time setting[10-3600]S;

e, Linkage setting support: upload mail \ voice broadcast alarm \ alarm light;

Vehicle Retrograde

a, 1) Support day arming /night arming mode;

2) Support to configure the customized arm time by week, with 4 time  periods per day;

b, supports one detection areas, and can draw a multi deformation detection area (Detection area is consist of four points);

c, Support video stream overlay detection frame;

d, Supports Four detection directions, Detection line support B->A direction

e, Linkage setting support: upload mail \ voice broadcast alarm \ alarm light;

Audio & Video Encoding

Standard

S265 / H.265/ H.264

Encoding Feature

Main stream:

PAL:  8MP(3840*2160@25fps) ,5MP (2592*1904@25fps,)

4MP(2560*1440@25fps),3MP(2304*1296@25fps),2MP(1920*1080@25fps

NTSC:  8MP(3072*2048@25fps),5MP(2592*1904@30fps) 4MP(2560*1440@30fps),3MP(2304*1296@30fps),2MP(1920*1080@30fps,

Sub-stream:

PAL:D1(720*576)@25fps,VGA(640*480)@25fps,Q720P(640*360)@25fps,864*480@25fps

NTSC:D1(720*576)@30fps,VGA(640*480)@30fps,Q720P(640*360)@30fps,864*480@30fps

Max Resolution

8MP 3840*2160

Video Code Rate

Fixed code rate,variable code rate

Video Type

Composited stream/video stream

Audio Standard

G.711u/G.711A 8K 64bit

Network Function

Network protocol

TCP/IP，UDP，HTTP，HTTPS，DHCP、PPPoE、RTSP、RTMP、DDNS、UPNP、FTP

Connection Protocol

Onvif/I8H/HIK Protocol /TST Protocol

Security Mode

Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification

Motion Detection

Set detection area, can set multi-level sensitivity

Occlusion Alarm

Support 1 area

Privacy Mask

Support 4 areas

Schedule Linkage

Upload Email/ FTP upload picture

Arming time support day arming/ night arming /customized arming

Device Abnormal

Inspection

Support disconnection alarm, IP conflict alarm, illegal access alarm

Character Overlay (OSD)

Support time OSD/Title OSD, multi-line OSD (two lines)

Main stream font support 12-60pt,sub stream font support 12-36pt,

Port

Network Port

RJ45 10M/100M network self-adaptation

Audio

MIC Input/ Output

Amplifier
